Name: Stormwater Segments

Display Field: PlanName

Type: Feature Layer

Geometry Type: esriGeometryPolyline

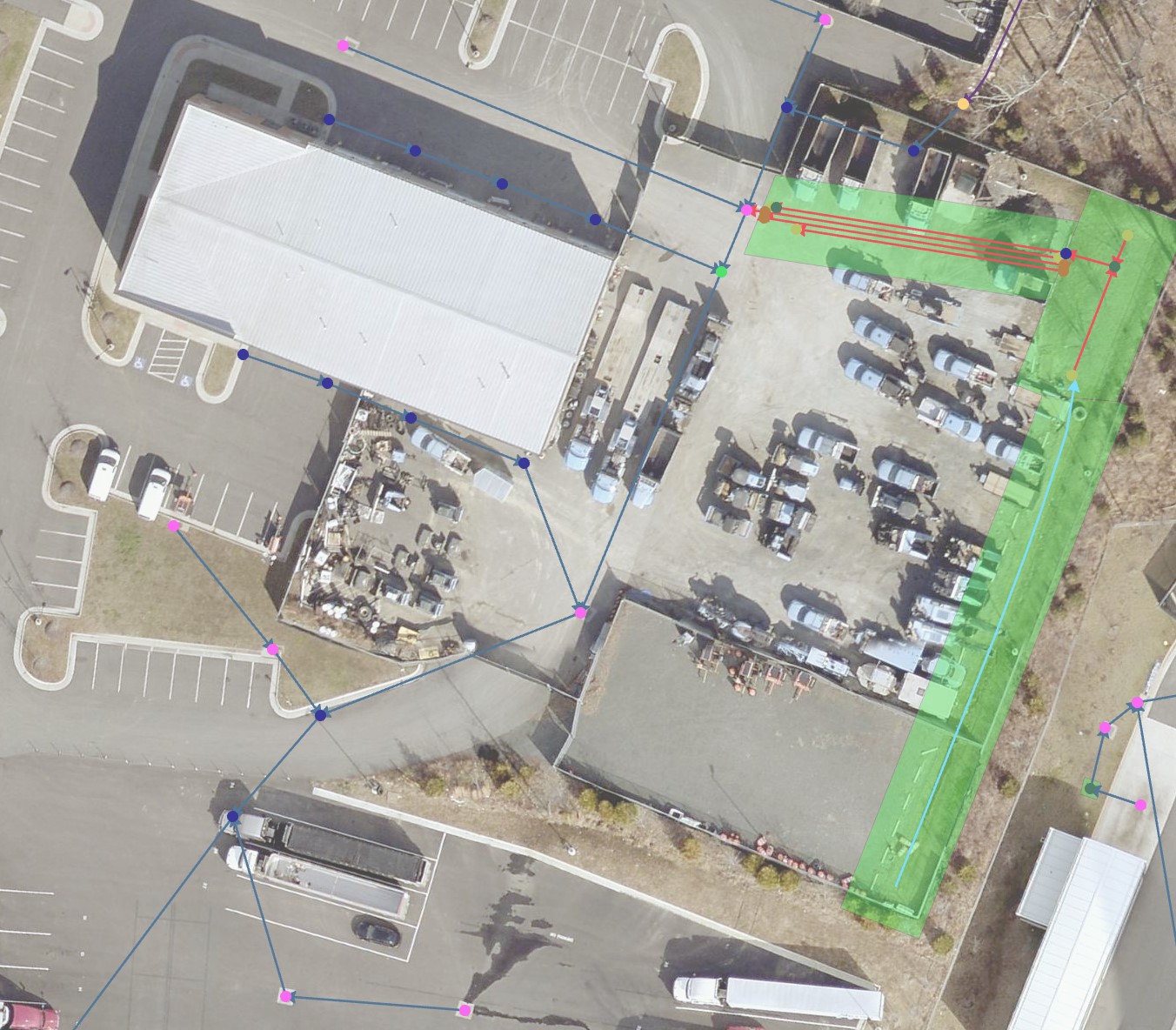

Description: This data layer contains line features representing the approximate location of storm water pipes and easements located within Prince William County, Virginia. The layer was created to provide basic information about storm water pipes (type of material, diameter, length, elevations, maintenance responsibility, etc.) and storm drainage easements (ditches, swales, etc.) in Prince William County. The layer was derived mainly from as-built plans and recorded plats; however, some information may have been obtained through approved plans as well as field surveys.

Copyright Text: Prince William County Department of Public Works, Environmental Management Division

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1.1709569000311643E7
YMin: 6878755.499757215
XMax: 1.184613289495404E7
YMax: 7025067.000437275
Spatial Reference: 102746  (2283)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [63, 135, 129, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• SEG_ID ( type: esriFieldTypeInteger, alias: SEG_ID )
• Symbology ( type: esriFieldTypeInteger, alias: Symbology , Coded Values: [41: 41 - Pipes maintained by others] , [42: 42 - Pipes maintained by County] , [44: 44 - Pipes serving as outlets from SWM facilities] , ...12 more... )
• FieldSurvey ( type: esriFieldTypeString, alias: Field Survey, length: 1 , Coded Values: [N: N - No] , [Y: Y - Yes] )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• WMPlanNumber ( type: esriFieldTypeString, alias: WM Plan Number, length: 5 , Coded Values: [1-1: 1-1] , [1-10: 1-10] , [1-11: 1-11] , ...30 more... )
• GridNumber ( type: esriFieldTypeInteger, alias: Grid Number )
• PlanName ( type: esriFieldTypeString, alias: Plan Name, length: 45 )
• InspectionArea ( type: esriFieldTypeInteger, alias: Inspection Area , Coded Values: [1: Inspection Area 1] , [2: Inspection Area 2] , [3: Inspection Area 3] )
• SystemNumber ( type: esriFieldTypeInteger, alias: System Number )
• InflowStructureType ( type: esriFieldTypeString, alias: Inflow Structure Type, length: 6 , Coded Values: [BCD: BCD - Bull Run Mtn Service District Concrete Ditch] , [BES: BES - Bull Run Mtn Service District End Section] , [BEW: BEW - Bull Run Mtn Service District End Wall] , ...90 more... )
• OutflowStructureType ( type: esriFieldTypeString, alias: Outflow Structure Type, length: 6 , Coded Values: [BCD: BCD - Bull Run Mtn Service District Concrete Ditch] , [BES: BES - Bull Run Mtn Service District End Section] , [BEW: BEW - Bull Run Mtn Service District End Wall] , ...90 more... )
• PIPESIZE ( type: esriFieldTypeString, alias: Pipe Size, length: 5 )
• SegmentType ( type: esriFieldTypeString, alias: Segment Type, length: 4 , Coded Values: [ACMP: ACMP - Asphalt Coated Corrugated Metal Pipe] , [BCD: BCD - Bull Run Mtn Service District Concrete Ditch] , [BCMP: BCMP - Bull Run Mtn Service District Corrugated Metal Pipe] , ...65 more... )
• SegmentCondition ( type: esriFieldTypeString, alias: Segment Condition, length: 4 , Coded Values: [BAD: BAD - Problems Identified] , [BEST: BEST - Just Installed] , [FAIR: FAIR - No Evidence of problems] )
• EasementWidth ( type: esriFieldTypeInteger, alias: Easement Width )
• EasementLength ( type: esriFieldTypeInteger, alias: Easement Length )
• AsBuiltLength ( type: esriFieldTypeInteger, alias: As-Built Length )
• InflowInvertElev ( type: esriFieldTypeDouble, alias: Inflow Invert Elevation )
• OutflowInvertElev ( type: esriFieldTypeDouble, alias: Outflow Invert Elevation )
• InflowStructureTop ( type: esriFieldTypeDouble, alias: Inflow Structure Top Elevation )
• OutflowStructureTop ( type: esriFieldTypeDouble, alias: Outflow Structure Top Elevation )
• InflowStructureDepth ( type: esriFieldTypeDouble, alias: Inflow Structure Depth )
• OutflowStructureDepth ( type: esriFieldTypeDouble, alias: Outflow Structure Depth )
• SubwatershedCode ( type: esriFieldTypeInteger, alias: Subwatershed Code , Coded Values: [0: 0] , [10: 10] , [20: 20] , ...197 more... )
• InventoryDate ( type: esriFieldTypeDate, alias: Inventory Date, length: 8 )
• Maintenance ( type: esriFieldTypeString, alias: Maintenance, length: 1 , Coded Values: [B: B - Bull Run Mtn Service District] , [C: C - Commercial] , [H: H - Homeowner] , ...3 more... )
• COMMENTS ( type: esriFieldTypeString, alias: Comments, length: 45 )
• FinalInspectionDate ( type: esriFieldTypeDate, alias: Final Inspection Date, length: 8 )
• PLANNUMBER ( type: esriFieldTypeString, alias: Plan Number, length: 35 )
• GASB ( type: esriFieldTypeString, alias: GASB, length: 45 , Coded Values: [N: N - Not included in GASB] , [Y: Y - Yes included in GASB] )
• GISReceivedDate ( type: esriFieldTypeDate, alias: GIS Received Date, length: 8 )
• STATUS ( type: esriFieldTypeString, alias: Status, length: 45 , Coded Values: [NR: NR - Non Residential] , [R: R - Residential] )
• DaysToInventory ( type: esriFieldTypeInteger, alias: Days to Inventory )
• SegTable_GLOBALID ( type: esriFieldTypeGUID, alias: SegTable_GLOBALID, length: 38 )
• CreatedUser ( type: esriFieldTypeString, alias: CreatedUser, length: 255 )
• CreatedDate ( type: esriFieldTypeDate, alias: CreatedDate, length: 8 )
• LastEditedUser ( type: esriFieldTypeString, alias: LastEditedUser, length: 255 )
• LastEditedDate ( type: esriFieldTypeDate, alias: LastEditedDate, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )
