Name: Stormwater Points

Display Field: FieldSurvey

Type: Feature Layer

Geometry Type: esriGeometryPoint

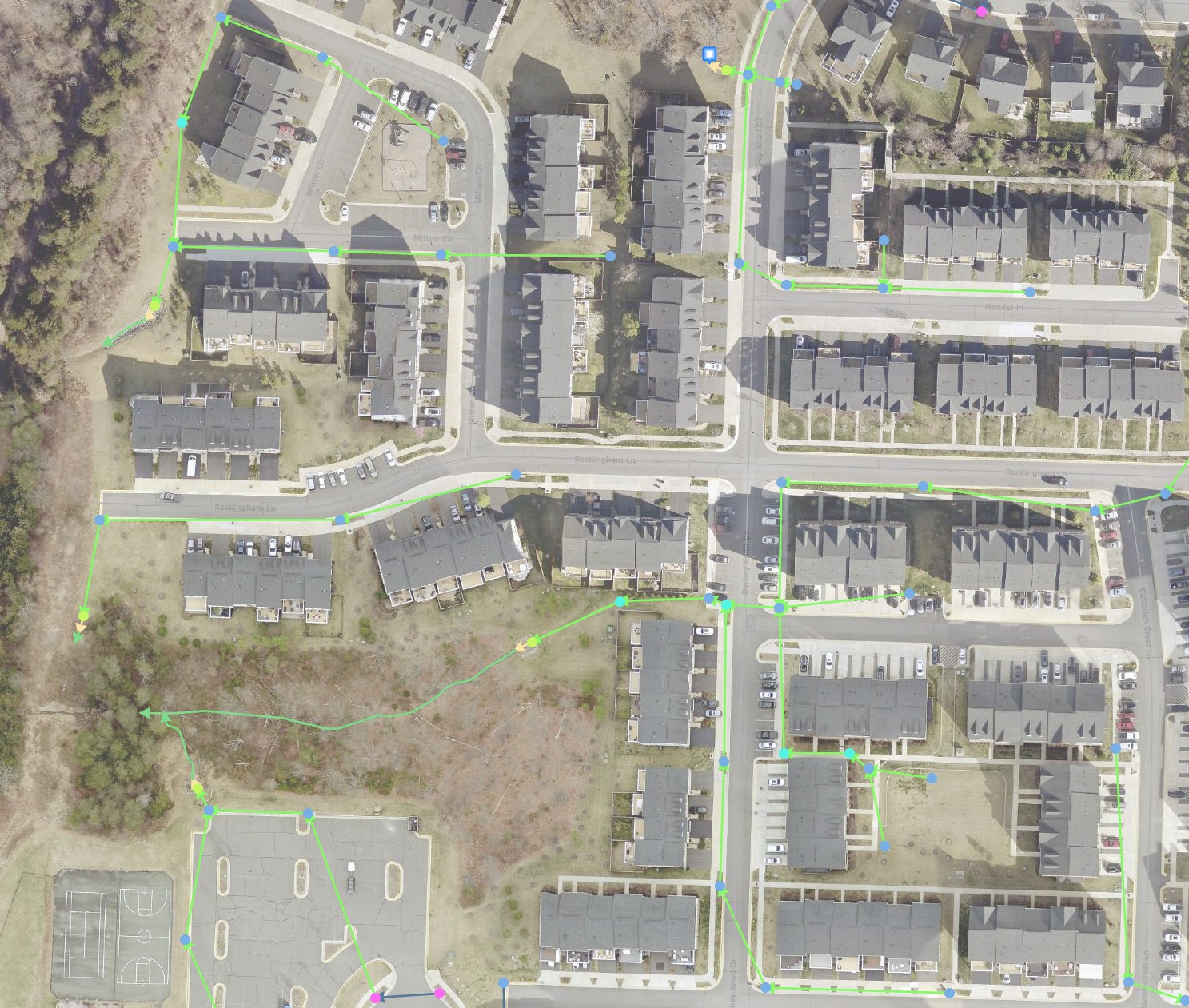

Description: This data layer contains point features representing the approximate location of storm water structures located within Prince William County, Virginia. It was created to provide basic information regarding the type of storm water structure (inlets, manholes, end walls, risers, etc.), elevations of the structure, and maintenance responsibility of the structure. The layer was derived mainly from as-built plans, however some information may have been obtained through approved plans as well as field surveys.

Copyright Text: Prince William County Department of Public Works, Environmental Management Division

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1.1709569000311643E7
YMin: 6878758.999727622
XMax: 1.1846111073479772E7
YMax: 7025067.000437275
Spatial Reference: 102746  (2283)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [35, 147, 89, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• STRUC_ID ( type: esriFieldTypeInteger, alias: Structure ID )
• OUTFALL ( type: esriFieldTypeInteger, alias: Outfall )
• Symbology ( type: esriFieldTypeInteger, alias: Symbology , Coded Values: [0: 0 - Pipe end (No maintenance associated with this symbol)] , [5: 5 - Drop inlets or yard inlets maintained by others] , [6: 6 - Drop inlets or yard inlets maintained by County] , ...10 more... )
• TopElevation ( type: esriFieldTypeDouble, alias: Top Elevation )
• BottomElevation ( type: esriFieldTypeDouble, alias: Bottom Elevation )
• DEPTH ( type: esriFieldTypeDouble, alias: Depth )
• FieldSurvey ( type: esriFieldTypeString, alias: Field Survey, length: 1 , Coded Values: [N: N - No] , [Y: Y - Yes] )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• DrainageArea ( type: esriFieldTypeDouble, alias: Drainage Area )
• LandUse ( type: esriFieldTypeString, alias: Land Use, length: 8 , Coded Values: [C: C - Commercial] , [IND: IND - Industrial] , [U: U - Utility] , ...22 more... )
• MS4RegOutfall ( type: esriFieldTypeString, alias: MS4 Regulated Outfall, length: 5 , Coded Values: [N: N - No] , [Y: Y - Yes] )
• CreatedUser ( type: esriFieldTypeString, alias: CreatedUser, length: 255 )
• CreatedDate ( type: esriFieldTypeDate, alias: CreatedDate, length: 8 )
• LastEditedUser ( type: esriFieldTypeString, alias: LastEditedUser, length: 255 )
• LastEditedDate ( type: esriFieldTypeDate, alias: LastEditedDate, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
