Name: Structures

Display Field: StructureType

Type: Feature Layer

Geometry Type: esriGeometryPolygon

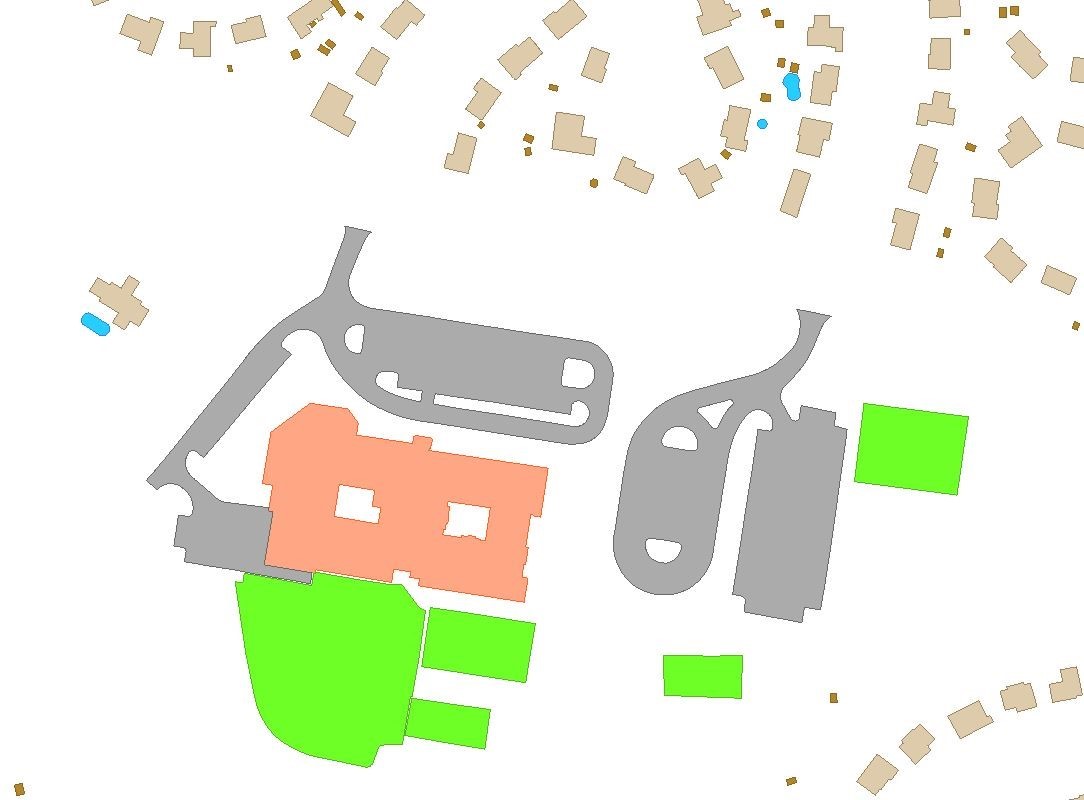

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This feature class consists of polygons (from a bird’s eye view) representing a 2D area of man-made permanent structures and impervious areas, including those at ground level. Any transportation features already represented in other layers (driveways, trails, sidewalks and roads) are not represented in this layer. Represented in the cultural polygon (AKA building footprint) layer are the following: Residential Buildings; Commercial Buildings; House Trailers; Residential Out buildings; Tanks; Silo; Towers; Pool; Race Tracks; Parking lots; Airfields; Recreation Fields; Unclassified.</SPAN></P><P><SPAN>Ongoing updates from as-built plans and imagery occur in select areas. The last major county-wide update was performed in 2021 by The Sanborn Map Company, using 2013 LiDAR, where available, to add height values to above ground structures. Prior to that, Fugro Geospatial provided a county-wide update of all features using 2017 digital imagery.</SPAN></P><P><SPAN>The collection of aerial photography and production of an ortho quality DEM and orthophotography was executed to capture the existing ground conditions at a specific point in time for the purpose of GIS analysis. Orthophotography along with DEM data typically provides an accurate base for digitally representing geographic features upon which a GIS is built. The Virginia Geographic Information Network Division (VGIN) is the lead public agency in the Commonwealth for spatial data and GIS. VGIN's mission is to facilitate the cost-effective development and use of spatial data, GIS, and related technologies in organizations throughout the Commonwealth.</SPAN></P><P><SPAN>In the spring of 2017, the Commonwealth of Virginia, through the Virginia Geographic Information Network Division (herein referred to as VGIN) of the Virginia Information Technologies Agency (VITA) contracted with Fugro Geospatial, Inc. to provide aerial data acquisition, ground control, aerial triangulation and development of statewide ortho quality DEM and digital orthophotography data. The Virginia Base Mapping Program (VBMP) update project is divided into three collection phases: In 2017, Fugro flew the eastern third of Virginia at one foot resolution, with options for localities and other interested parties to upgrade resolution or purchase other optional products through the state contract. The middle third of Virginia will be flown in 2018 and the western third in 2019. Ortho products are 1-foot resolution statewide with upgrades to 6-inch resolution tiles and 3-inch resolution tiles in various regions within the project area. The Virginia Base Mapping project encompasses the entire land area of the Commonwealth of Virginia over 4 years. The State boundary is buffered by 1000'. Coastal areas of the State bordering the Atlantic Ocean or the Chesapeake Bay are buffered by 1000' or the extent of man-made features extending from shore. This metadata record describes the generation of new Digital Terrain Model (DTM) and contours generated at 2-foot intervals. All products are being delivered in the North American Datum of 1983 (1986), State Plane Virginia North. The vertical datum was the North American Vertical Datum of 1988 (NAVD88) using GEOID12B.</SPAN></P></DIV></DIV></DIV>

Copyright Text: Prince William County Department of Information Technology (DoIT), Prince William County Department of Information Technology (DoIT), Geospatial Technology Services (GTS) Program; Fugro,Inc.; The Sanborn Map Company

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 24000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 1.1707835376562506E7
YMin: 6867203.636749998
XMax: 1.1845768699375004E7
YMax: 7027254.632062495
Spatial Reference: 102746  (2283)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: StructureType
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSFSSolid
Color: [255, 211, 127, 255]
Outline:
Style: esriSLSSolid
Color: [156, 156, 156, 255]
Width: 0
Default Label: <all other values>
UniqueValueInfos:
• Value: 1
  Label: Residence
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 235, 190, 255]
  Outline:
  Style: esriSLSSolid
  Color: [178, 178, 178, 255]
  Width: 0
• Value: 2
  Label: Residence
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 235, 190, 255]
  Outline:
  Style: esriSLSSolid
  Color: [156, 156, 156, 255]
  Width: 0
• Value: 4
  Label: Residence
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 235, 175, 255]
  Outline:
  Style: esriSLSSolid
  Color: [156, 156, 156, 255]
  Width: 0
• Value: 8
  Label: Pool
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 211, 127, 0]
  Outline:
  Style: esriSLSSolid
  Color: [0, 169, 230, 255]
  Width: 0
• Value: 9
  Label: Recreation Field
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [255, 211, 127, 0]
  Outline:
  Style: esriSLSSolid
  Color: [112, 168, 0, 255]
  Width: 0
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: StructureType

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• StructureType ( type: esriFieldTypeSmallInteger, alias: Structure Type )
• StructureStatus ( type: esriFieldTypeString, alias: Structure Status, length: 10 , Coded Values: [Active: Active] , [Pending: Pending] )
• StructureHeight ( type: esriFieldTypeDouble, alias: Structure Height )
• StructureHeightAboveSeaLevel ( type: esriFieldTypeDouble, alias: Structure Height Above Sea Level )
• DataSource ( type: esriFieldTypeSmallInteger, alias: Data Source , Coded Values: [1000: 1000 - Photogrammetry, 1987 AS & D] , [1001: 1001 - Screen Digitized Photogrammetry, 1987 AS & D] , [1100: 1100 - Edge Match (1998-1999) - Not from Recorded Plat with VCS83 Coordinates] , ...54 more... )
• CreateUser ( type: esriFieldTypeString, alias: Create User, length: 20 )
• CreateDate ( type: esriFieldTypeDate, alias: Create Date, length: 8 )
• LastEditUser ( type: esriFieldTypeString, alias: Last Edit User, length: 20 )
• LastEditDate ( type: esriFieldTypeDate, alias: Last Edit Date, length: 8 )
• Shape ( type: esriFieldTypeGeometry, alias: SHAPE )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Types:

ID: 1
Name: Residence
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 2
Name: House Trailer
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 3
Name: Commercial
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 4
Name: Residential Outbuilding
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 5
Name: Tank
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 6
Name: Silo
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 7
Name: Tower
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 8
Name: Pool
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 9
Name: Recreation Field
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

ID: 10
Name: Mixed Use
Domains:
• StructureStatus:
  Inherited
• DataSource:
  Inherited

---

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
